Facts about WWVB



Station:
WWVB
Frequency:
60 kHz
Transmitting power:
50 kW
Location:
Fort Collins / Colorado

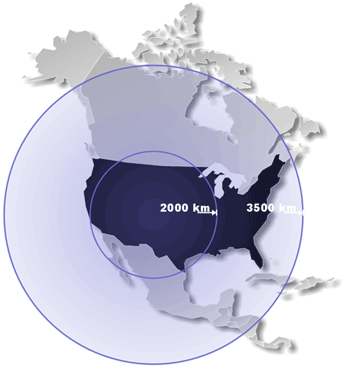

Receiving area:
2000 km
Geographical coordinates:
40° 40' N, 105° 03' W
Time of transmission:
permanent
Modulation:
69%


The Time-Code




Time code information according the NIST document
The information is present as a continuous bit stream with a data rate of 1 bit per second by using pulse width modulation.
The power of the carrier is reduced 10dB at the beginning of each second and then restored to its full level. Thus, the leading edge of every negative going pulse is on time.

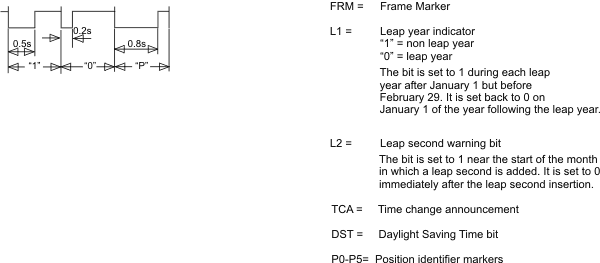

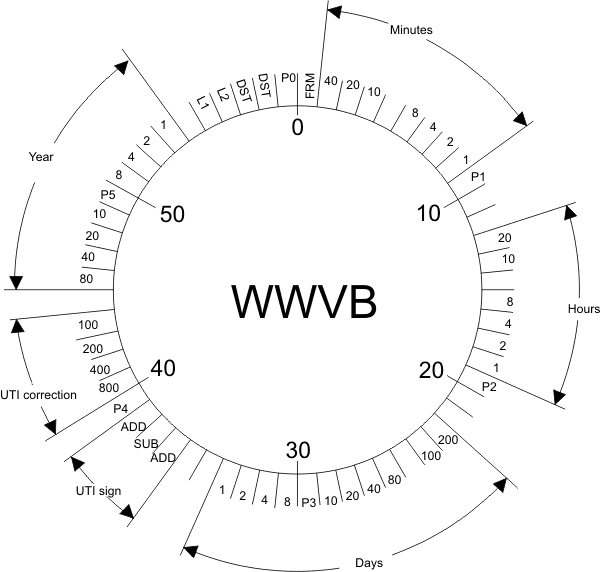

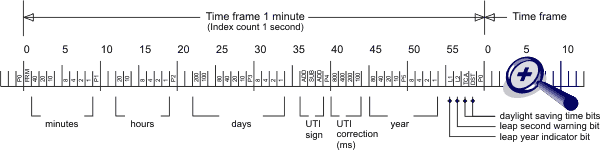

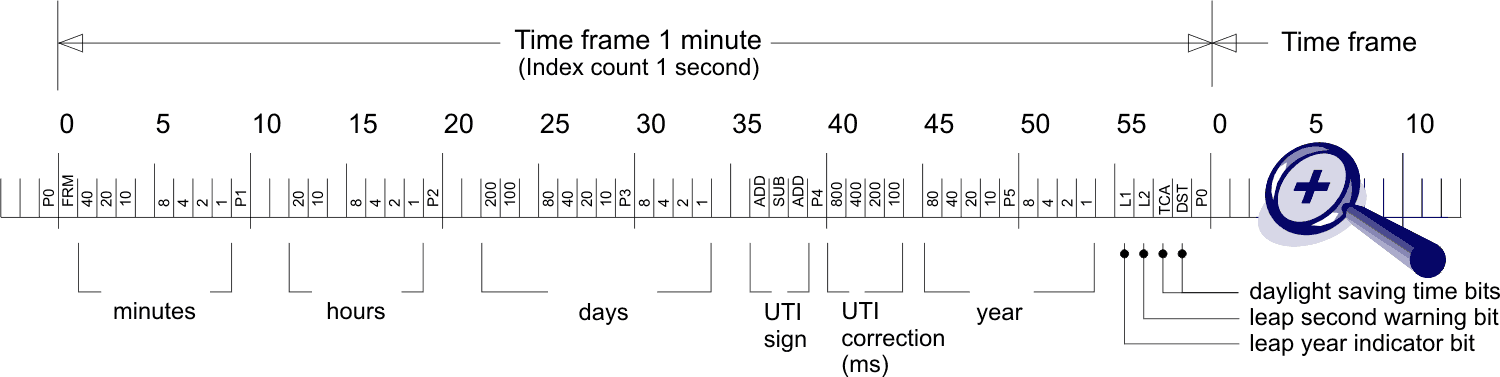

Coming back to full power after 0.2 seconds represents a binary "0", after 0.5 seconds a binary "1". A position marker (P0 to P5) is signalised by a 0.8 second delay. The binary coded decimal (BCD code) format is used to combine binary digits in order to represent decimal numbers (for location of the information, as well as content) see drawing).
This gives the possibility to decode all necessary information of time, day of the year and year (and some additional information as flags for leap year and leap seconds) out of the signal.

Please verify this information before commercial use !
